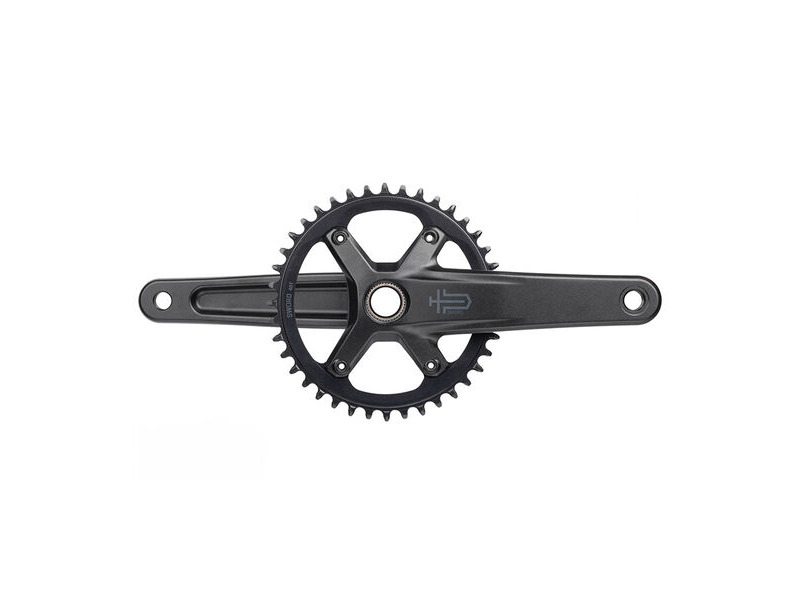

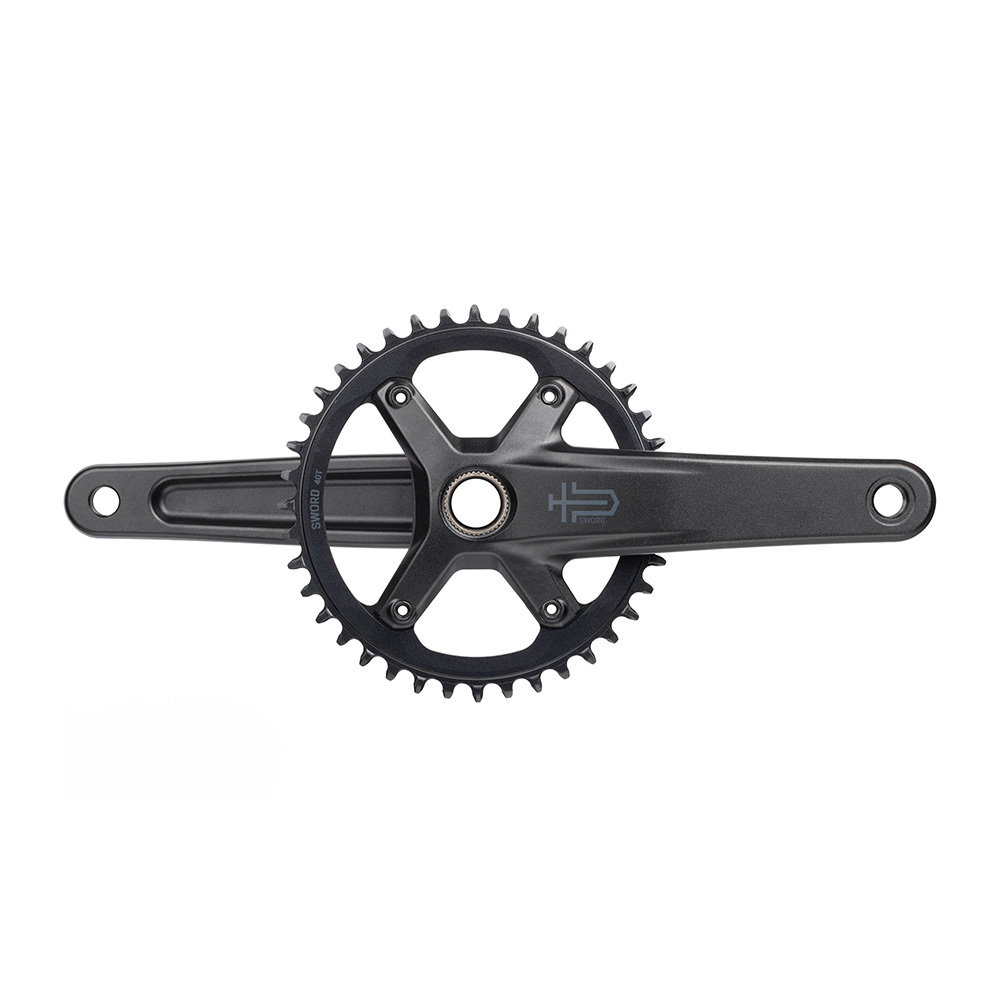

The Sword 1x crankset is designed for simplicity. With a single, chain-retaining ring mounted to the crankset's outer ring position, it pairs perfectly with the rest of the Sword 1x drivetrain to give you the stiffness, chain security, and ease of ownership you expect from a 1x drivetrain.

It's designed to be as compatible as possible: the 24mm spindle is compatible with a ton of aftermarket bottom brackets, and it's easy to convert from a 1x to a 2x crank by simply installing our 2x chainrings.

• Wide design optimised for 50mm chainline
• 24mm spindle compatible with Shimano bottom brackets
• 1x chain-retaining ring works well with clutch derailleur
• Easy conversion from 2x to 1x

Specifications

• Group: Sword
• Speed: 10-Speed
• Chainring Type: 1x Single
• Chainring Size: 40 or 42T
• Chainring Material: Aluminium
• Chainline: 50 mm
• Chainring BCD: 110 Asymmetric
• Arm Length: 165mm, 170mm, 172.5mm, 175mm
• Spindle: Standard 24mm
• BB Shell Width: Press Fit 86.5mm or Threaded 68mm
• Weight: 810g (172.5mm)
